Xlafold

Xlafold

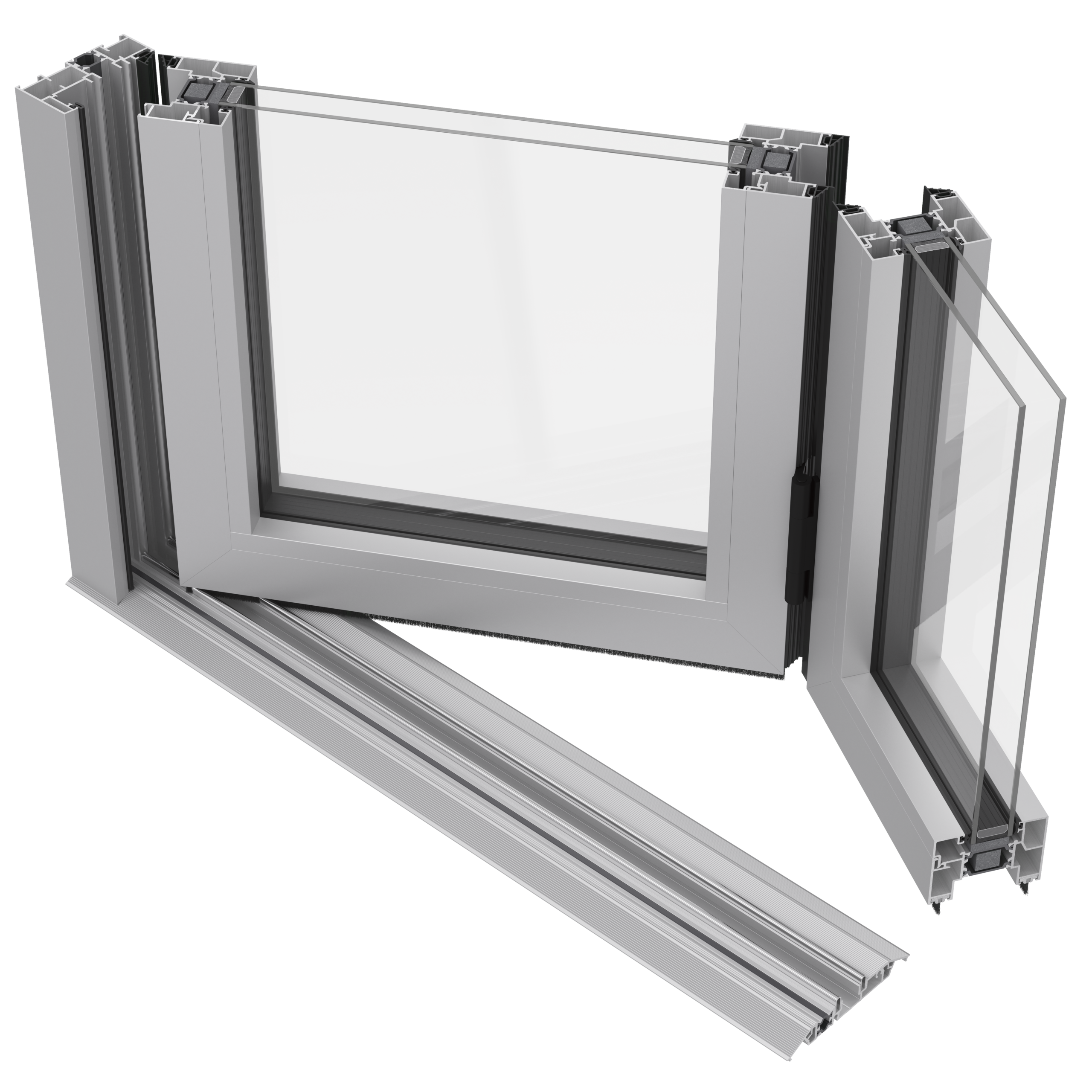

Nothing beats the feel-good factor of an open living space. A seamless transition to outdoor living, Xlafold aluminium bi-folding doors offer superb slimline aesthetics with a strong,
robust performance. This system maximises the glazed area thanks to their sleek, slimline aluminium profiles which deliver maximum light appeal.

  • Range of configurations available
  • Half rollers available for even panel number configurations
  • Choice of glazing thickness’ available

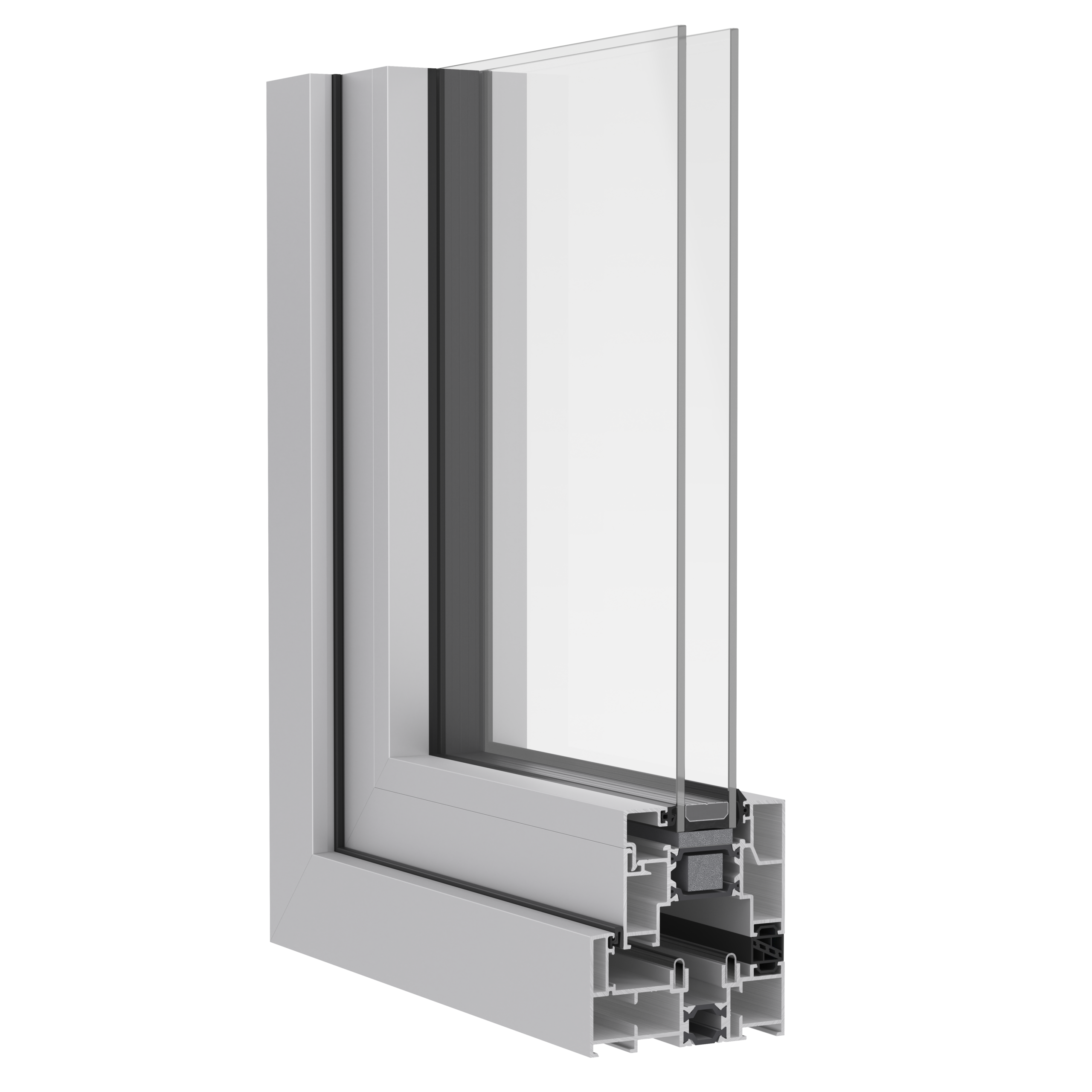

  • Square or curved sash and outer frame options
  • Square or bevelled beads
  • High security internal beading
  • Ultra slim sightlines for optimised exterior views
  • Smooth sliding durable roller system
  • Low threshold for easy access
  • Compatible with double and triple glazing
  • Open in and open outdoors available
  • “Master” doors with 3 point locking available
  • French door opening configuration available
  • PAS 24 security accreditation
Technical information
Performance
Openings
Benefits
Downloads
Air permeability* Class 3
Water tightness* Class 8A
Wind load* Class C3
Thermal insulation Uw** Up to 1,2 W/m2K



* Air/Water/Wind tests according to standard BS6375-1

** Please note: U-Values are dependant on size and glass U-Values.

Maximun leaf size: 1000x2400 mm

Maximum weight: 100 kg

Maximun glazing: 49 mm

Polyamide: 20/32 mm

Air/Water/Wind tests according to standard BS6375-1

PAS 24 security accreditation

Design

Xlafold enables the creation of a sleek and modern bifolding door for enhanced visual appeal at any room.

Features

It has an ultra-smooth action, even in heavy leafs of maximum 100 kg. This system has bespoke, adjustable and heavy duty rollers,
including a half roller option which ensure uniform pane widths for enhanced visual appeal.

Benefits

Xlafold is a thermally efficient bi-folding door which gives a Uw value of 1,2 W/m2K.

Possibilities

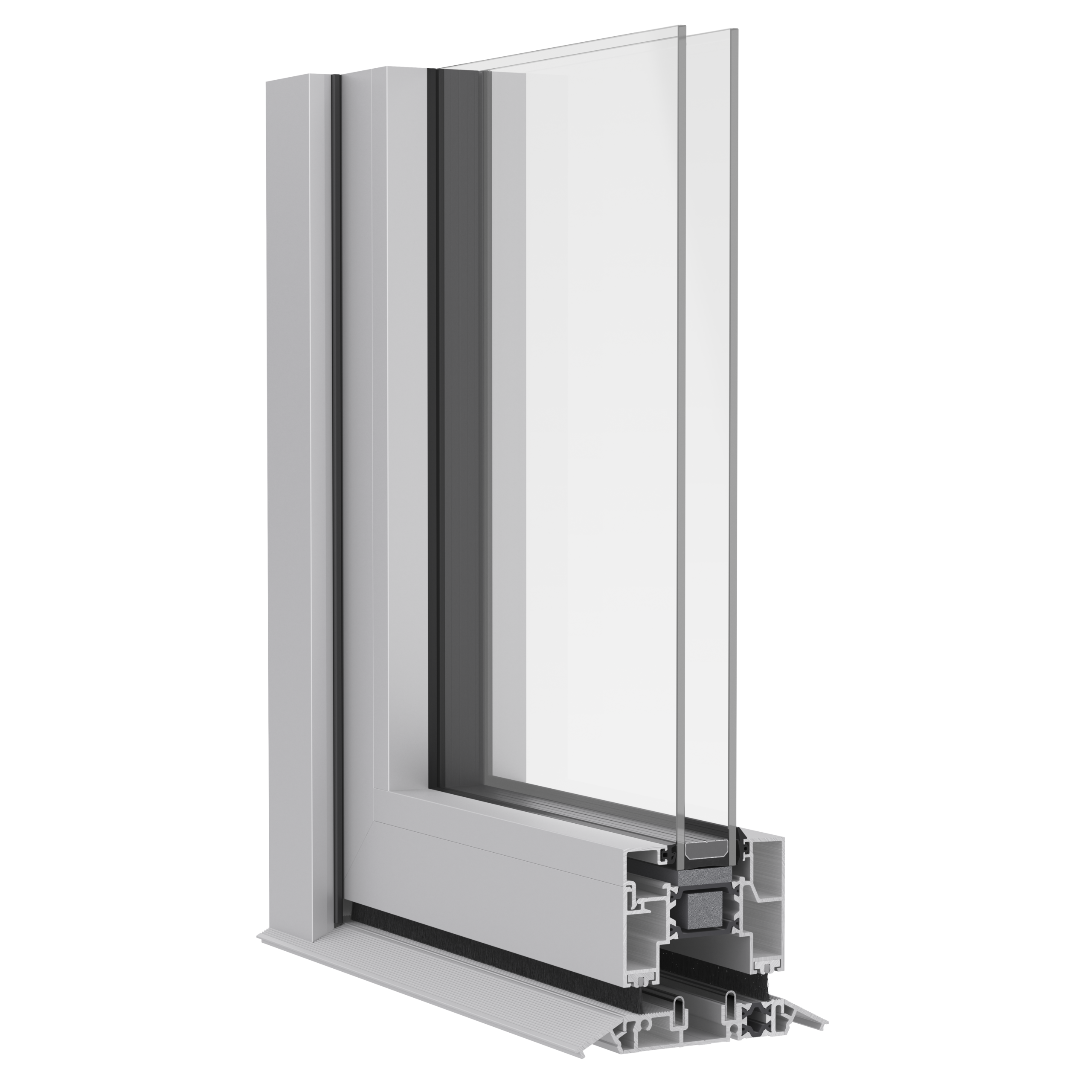

Xlafold facilitates glazing options from 10 to 40 mm, making it ideal for commercial single glazed sites or even to accommodate a triple glazed unit when thermal performance is key. This bi-folding door incorporates a low threshold cill option with a “clip” on ramps either side, enhancing the design options for the system.
