BRS-82
The BRS-82 foldable door by Exlabesa stands out for its refined design and advanced functionality, ideal for those seeking to combine aesthetics and performance in their projects. Its structure is engineered to maximise the entry of natural light, bringing a sense of spaciousness and sophistication to any space.
Thanks to its Slim version, featuring an exclusive central profile of just 109 mm, this door significantly increases glazed surface area, allowing for a greater visual connection between spaces.
This system offers flexible installation options, including a traditional frame or a flat 15 mm threshold, enhancing accessibility. Furthermore, the BRS-82 door guarantees excellent thermal and acoustic insulation, with a Uw value of only 1.1 W/m²K, improving energy efficiency and interior comfort.
The BRS-82 foldable door provides multiple opening configurations, including a hinged door option that allows easy access without the need to fold the entire system.
Maximum recommended dimensions per leaf (W x H): 1200x3000 mm
Maximum recommended weight per leaf: 120 kg
Maximum glazing thickness: 52 mm
Thermal transmittance Uw (up to): 1,1 W/m2K
Polyamide strips: 20/32 mm

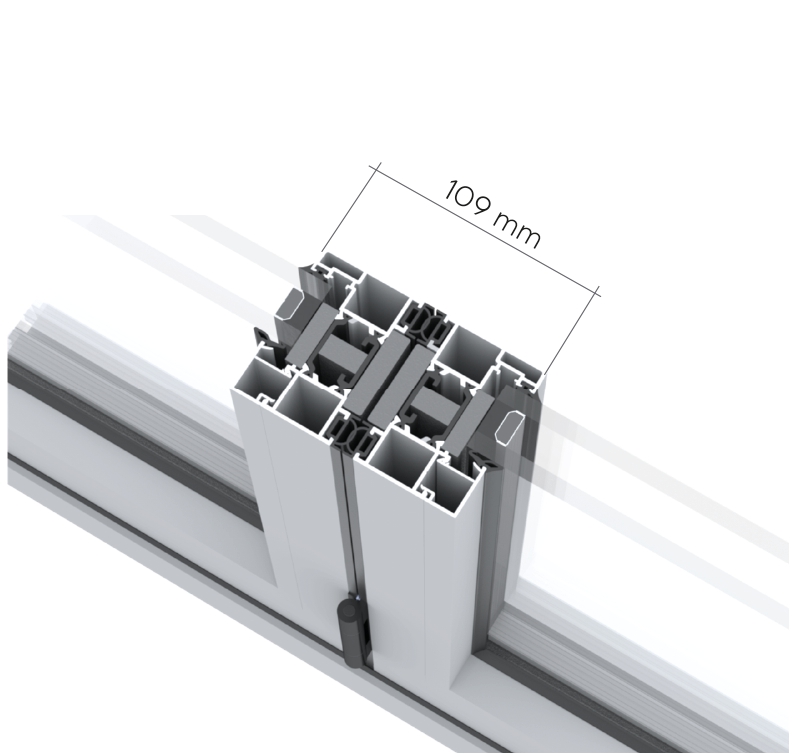

Slim version with an ultra-slim central junction of just 109 mm
15 mm threshold option for full accessibility
Design
A foldable aluminium door designed to offer elegance while creating open and connected spaces. The Slim version of our system features a uniquely compact central junction, measuring only 109 mm—unmatched in the market. This allows for a sleek, minimalist design that maximises the entry of natural light, resulting in brighter spaces. Additionally, users can choose between a standard perimeter frame profile or a flat 15 mm threshold version, which ensures the highest level of accessibility by providing a barrier-free entrance—ideal for both residential and commercial settings.
Features
From a technical standpoint, the recommended maximum leaf dimensions are 1200 x 3000 mm per panel, with a maximum weight of up to 120 kg and glazing thickness of up to 52 mm.
Performance
The BRS-82 foldable door stands out thanks to its technical features, which ensure excellent thermal insulation as well as optimal weather tightness. It achieves outstanding results in AEV testing (Class 4 / E750 / C2) and thermal transmittance (Uw: as low as 1.1 W/m²K).
Options

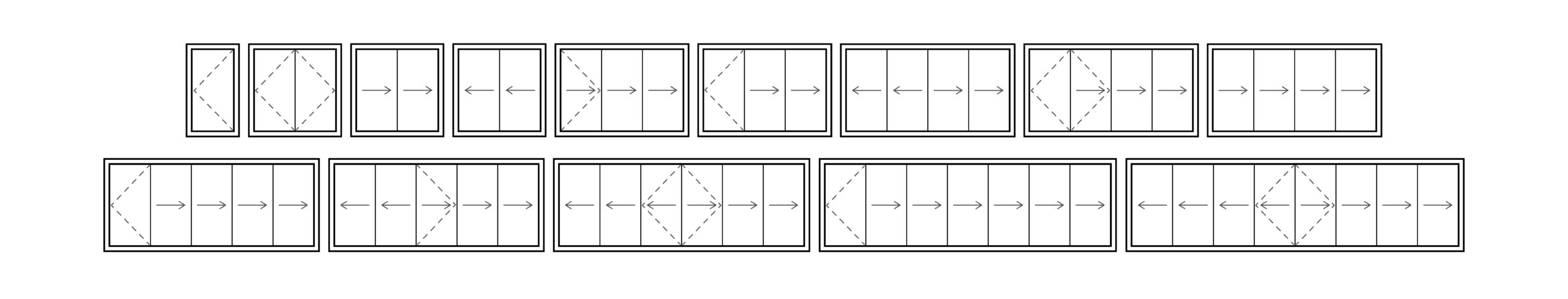

Designed to offer functional, robust, and durable doors, this system supports a wide range of installation configurations. From a simple hinged opening to setups with up to 14 panels and a height of 3 metres, this aluminium foldable door can be adapted to suit any architectural project.
