ARS-82
The ARS-82 is the most premium solution within the ARS range, combining outstanding thermal performance, minimalist design, and optimized production efficiency in a high value-added system. Its slim visible sash-frame section of just 85 mm maximizes natural light entry while delivering a clean, modern, and elegant aesthetic.
With a thermal transmittance value of Uf 1.2 W/m²K, the ARS-82 ensures excellent insulation performance even under demanding climatic conditions, helping to meet the strictest energy efficiency requirements. In its Passivhaus-certified configuration, it achieves a Uf value of 0.978 W/m²K, making it an ideal solution for Nearly Zero-Energy Buildings (NZEB) and projects developed under the highest international energy-efficiency standards.
The system also integrates advanced comfort and functionality features such as micro-ventilation, concealed drainage, and hidden hardware, enhancing both usability and aesthetics.
Its full compatibility with the ARS platform enables process standardization, component sharing, and workshop optimization, reducing operational costs and stock requirements.
| Air permeability* | UNE-EN 1026:2017; UNE-EN 12207:2017 | Class 4 |
| Water tightness* | UNE-EN 1027:2017; UNE-EN 12208:2000 | Class E1950 |
| Wind load resistance* | UNE-EN 12211:2017; UNE-EN 12210:2017 | Class C5 |
| Thermal insulation Uw** | UNE-EN 10077-1:2017 | Up to 0.74 W/m2K |
| Sound insulation Rw | UNE-EN ISO 10140-2:2011 | 45 dB (-1; -3) |
* Specifications of 2-sashes window of 1230×1480 mm
** Specifications of a 1-sash balcony window of 1100×2200 mm
Maximum recommended dimensions for hinged window: 1500x3000 mm/sash
Maximum recommended dimensions for tilt-and-turn window: 1400x2600 mm/sash
Maximum recommended weight: 180 kg/sash
Maximum glazing thickness: 78 mm
Polyamide: 44 mm
Euro groove

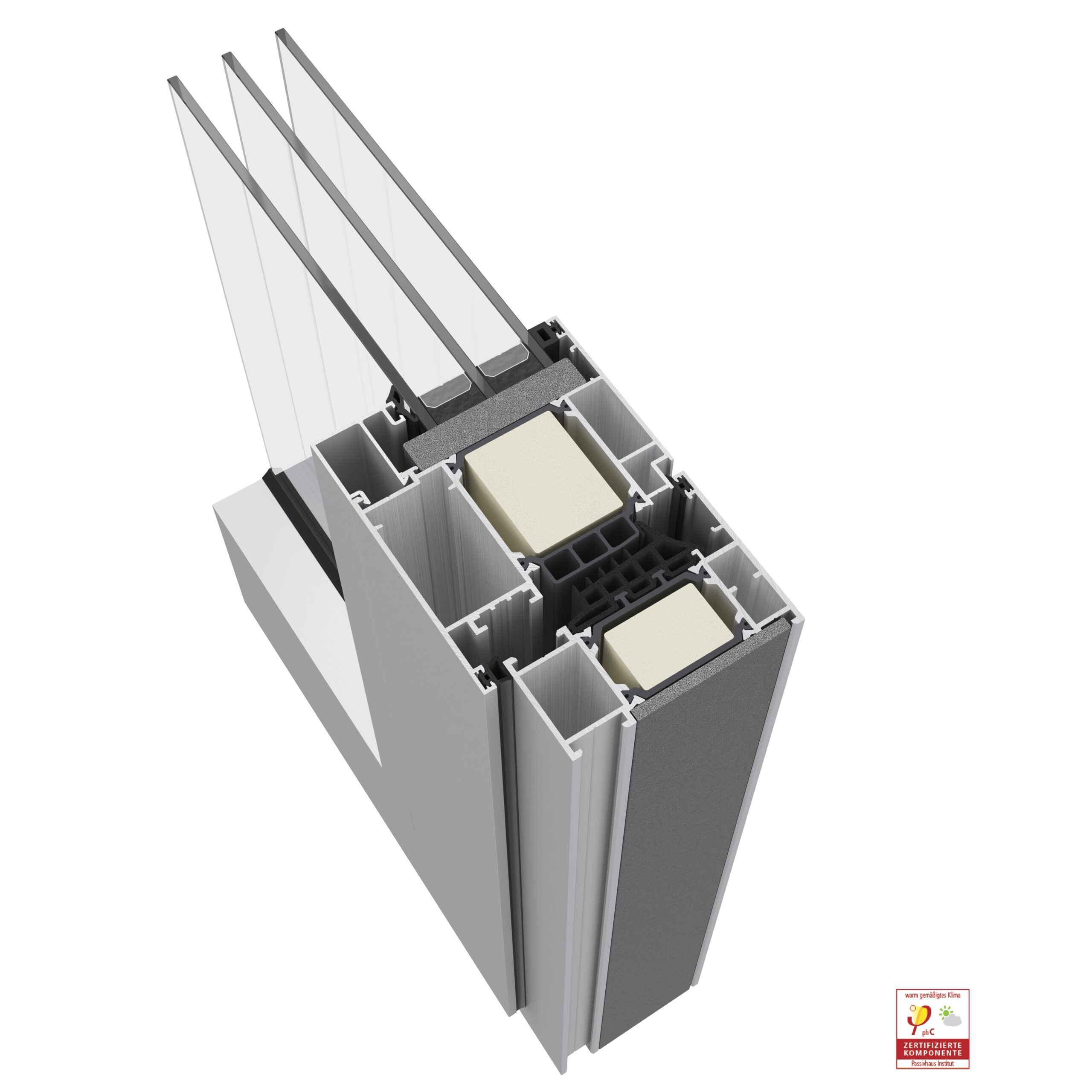

Available with Passivhaus certification: thermal transmittance value of Uf 0.978 W/m²K
Option for concealed hardware and micro-ventilation

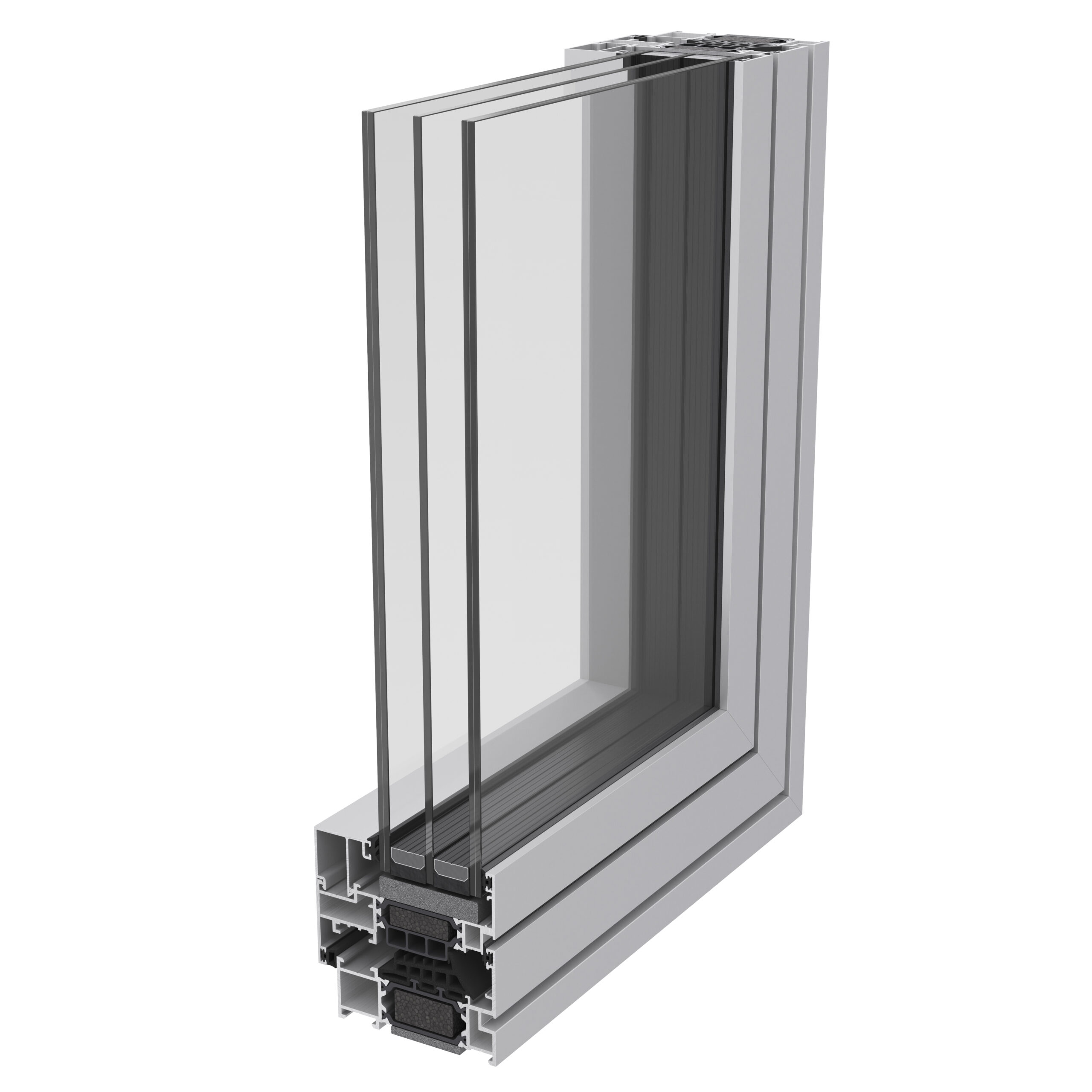

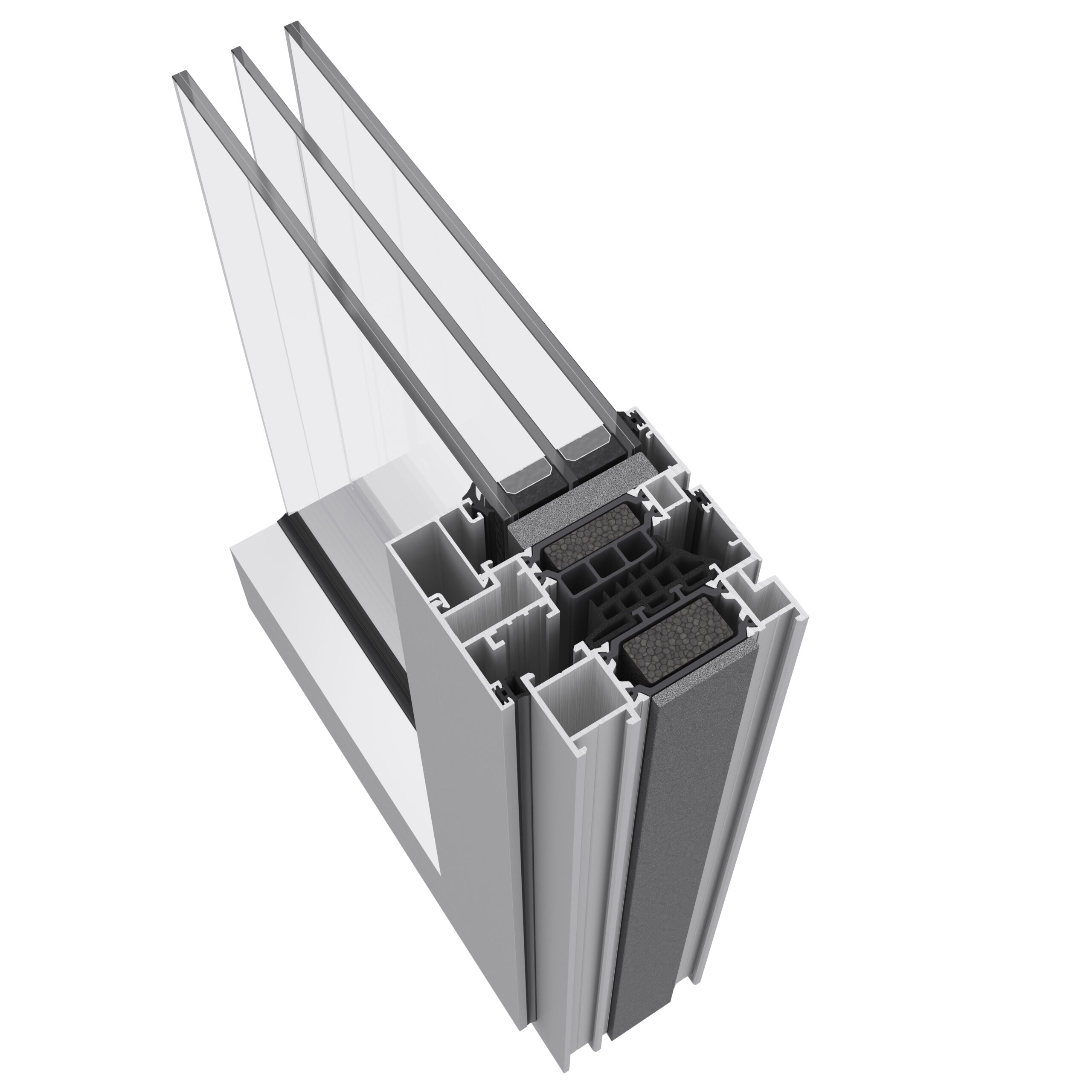

Option for frame with concealed drainage
Central gasket in EPDM foam and cellular polystyrene foams
Security glazing packer to improve load distribution on the hardware
Full compatibility with the ARS platform for standardised manufacturing
Design

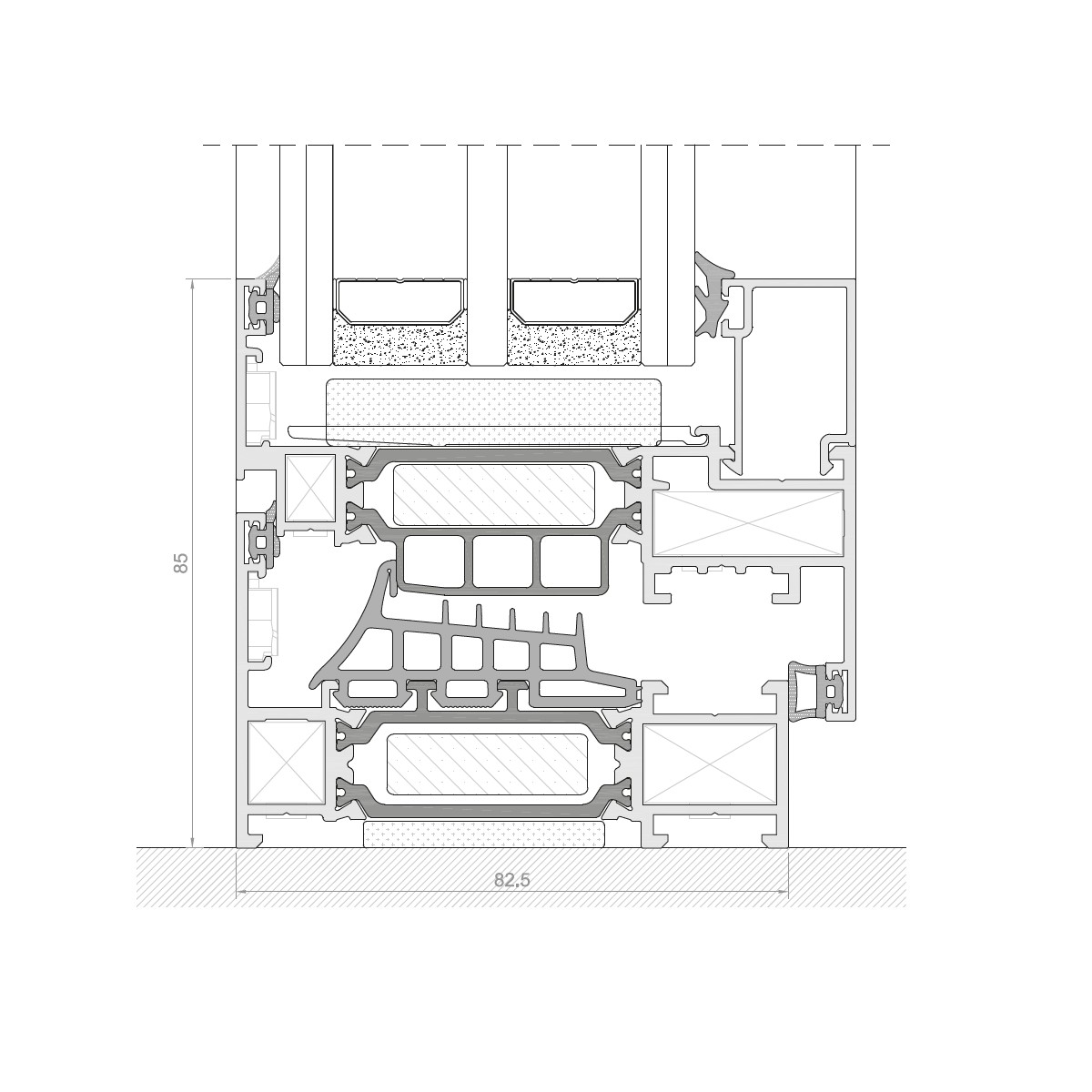

The ARS-82 features an 85 mm visible section, designed to maximise the glazed area. It accommodates glazing units of up to 78 mm, increasing natural light intake and delivering a light, minimalist and contemporary aesthetic, ideal for projects seeking brightness and sophistication.
Features

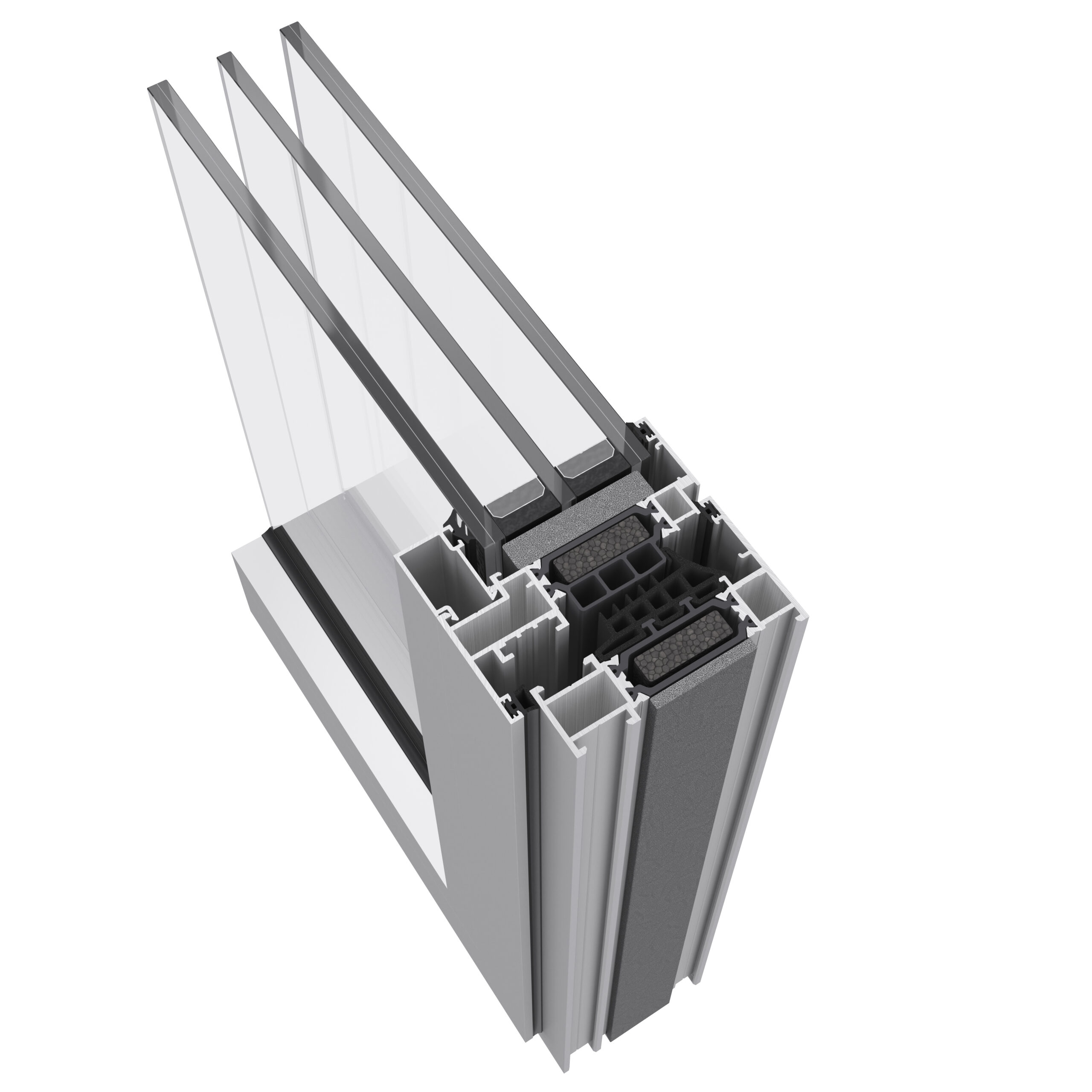

Its structure, with a 44 mm polyamide, an EPDM central gasket and cellular polystyrene foams, ensures superior thermal and acoustic insulation. The security glazing packer guarantees correct load transfer to the hardware, enhancing the durability and reliability of the system.
Performance
The system achieves a thermal transmittance value of Uf 1.2 W/m²K, which can reach up to 0.978 W/m²K in its Passivhaus-certified version. It also offers Uw values of up to 0.74 W/m²K and 0.73 W/m²K in the Passivhaus configuration, ensuring outstanding thermal comfort even in demanding climates while significantly reducing the building’s energy demand. In addition, its acoustic insulation capacity of 44 dB and its AEV classification Class 4/E1950/C5 guarantee exceptional performance against noise and severe weather conditions.
Options
With options for concealed hardware, micro-ventilation and a frame with concealed drainage, the ARS-82 adapts to any technical, aesthetic or functional requirement, combining design, comfort and efficiency in a truly premium system.
